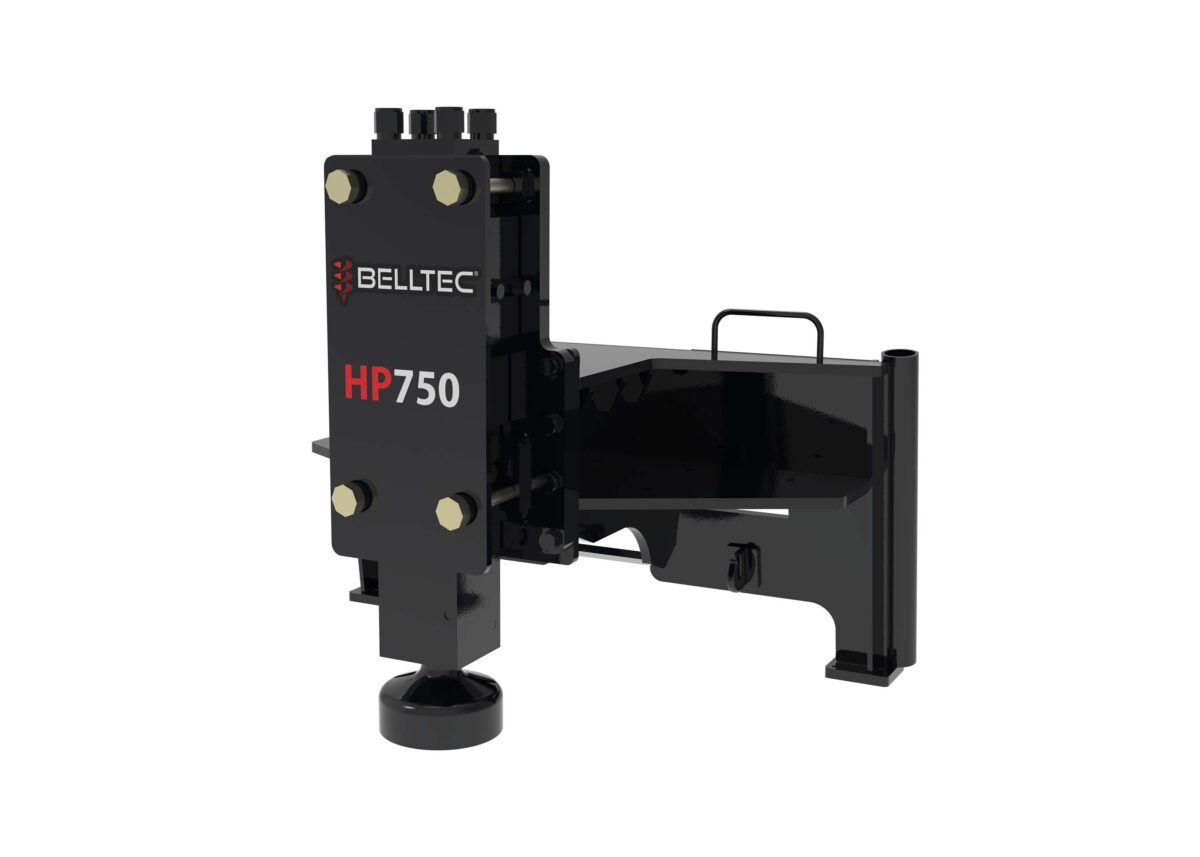

HP750

The HP Series deliver powerful performance for a wide range of driven post applications. Powered by a nitrogen power cell, this rugged attachment is designed for reliability and low maintenance.

Designed to drive both wood and steel posts with ease, the HP Series is easily adaptable.

Find a Dealer

Key Specifications

  • Prime Mover Weight Class: 4-6 tons
  • Min Hydraulic Pressure: 2,000 PSI (138 Bar)
  • Max Hydraulic Pressure: 3,000 PSI (207 Bar)
  • Required Hydraulic Flow: 11-18 GPM (41-68 LPM)
  • Blow Count / Minute: 500-900
  • Nitrogen Pressure: 230 PSI (16 Bar)
  • Drive Tool Shank Diameter: 2.7” (68.5mm)
  • Weight – Skid Loader Configuration: 1,263 Lbs. (573 Kg)
  • Weight – Excavator Configuration: 800 Lbs. (363 Kg)

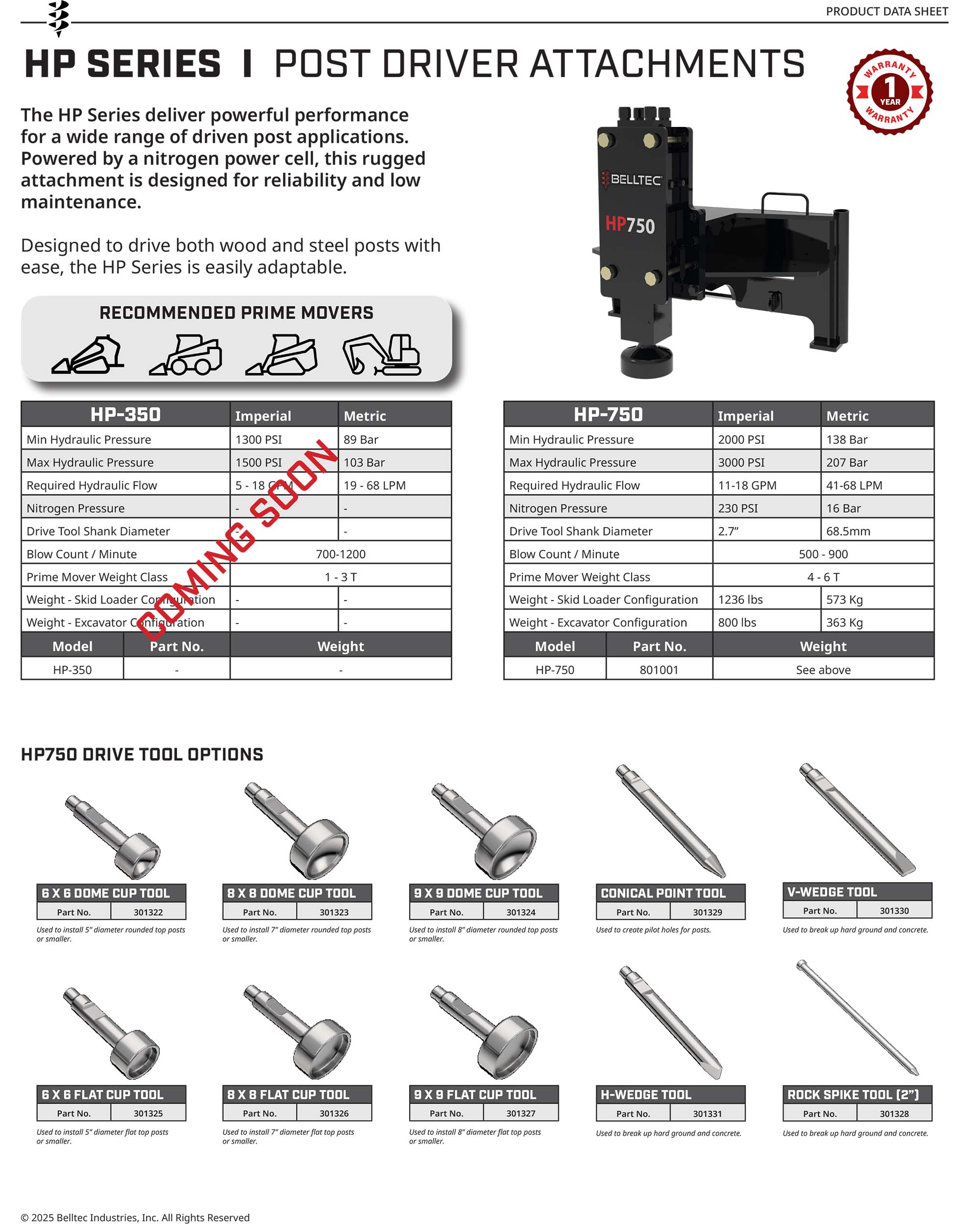

Product Literature
